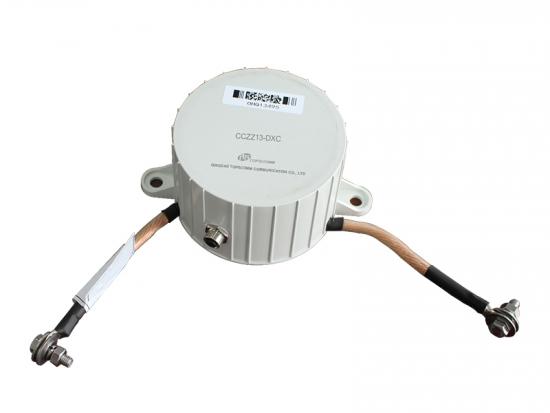

CCZZ13-DXC Inductive Coupler

CCZZ13-DXC Inductive Coupler is a passive device which allows the PLC communication module to transmit power line signals to the cable line shielding layer. The coupling signal is transmitted to the power line with low signal loss, ranging from 200kHz to 12MHz.


  • Item NO.:

    CCZZ13-DXC
  • Order(MOQ):

    1
  • Product Origin:

    Qingdao, China
Products Description

CCZZ13-DXC Inductive Coupler is a passive device which allows the PLC communication module to transmit power line signals to the cable line shielding layer. The coupling signal is transmitted to the power line with low signal loss, ranging from 200kHz to 12MHz.

Application

Medium voltage power line (6kV ~ 35kV)

Frequency200kHz~12MHz
Attenuation≤2dB

Operating temperature

-45℃~85℃

Protection

IP67

Installation

Injection

Service life

≥15 years

Dimension

⌀130mm×68.5mm

Weight

2kg


Our Advantages

  • Adopting the direct coupling mode, the coupler has strong coupling ability and can guarantee the efficiency of carrier signal feed-network.

  • Easy installation, the coupler directly connected to the cable shield layer.
