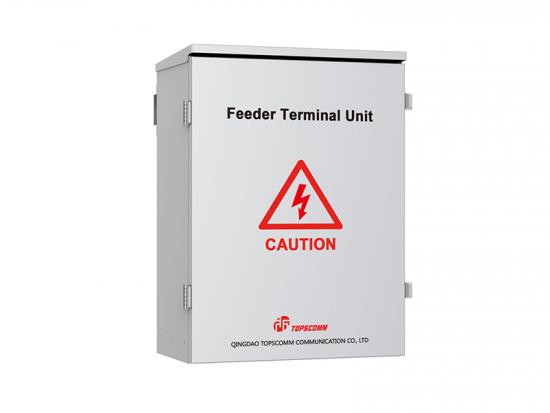

F30GTX-DX Feeder Terminal Unit

F30GTX-DX series feeder terminal product is a new generation of intelligent high-tech distribution automation terminals.


  • Item NO.:

    F30GTX-DX
  • Order(MOQ):

    1
  • Product Origin:

    Qingdao, China
Products Description

F30GTX-DX is installed on the medium voltage feeder line, it can detect the voltage, current, power and other electric quantity, and control the on-off of the pole top switch, it has the functions of abnormal warning, fault detection, three-stage protection etc. The product is equipped with serial interface and Ethernet interface, and supports a variety of communication modes such as optical fiber, wireless and power line carrier. It can communicate with the distribution automation master station, execute the orders issued by the master station, adjust and control the distribution equipment.


Operating voltage

AC220V

Accuracy

Class 0.5 (votage, current), Class 1.0 ( active, reactive)



Metering & control capacity

Telesignalisation:4 telesignalisation

Telemetering:Uab, Ucb, U0, Ia, Ib, Ic, I0

Telecommand:switch opening, switch closing

Telesignalisation resolution

≤2ms

Software anti-shake

10 to 60000ms configurable

Punctuality

≤2s (per 24hrs)

Communication

RS232/RS485, RJ45

Backup power

Ultracapacitor, battery storage
