F30GTZ-DX Feeder Terminal Unit

F30GTZ-DX series feeder terminal product is a new generation of intelligent high-tech distribution automation terminal.


  • Item NO.:

    F30GTZ-DX
  • Order(MOQ):

    1
  • Product Origin:

    Qingdao, China
Products Description

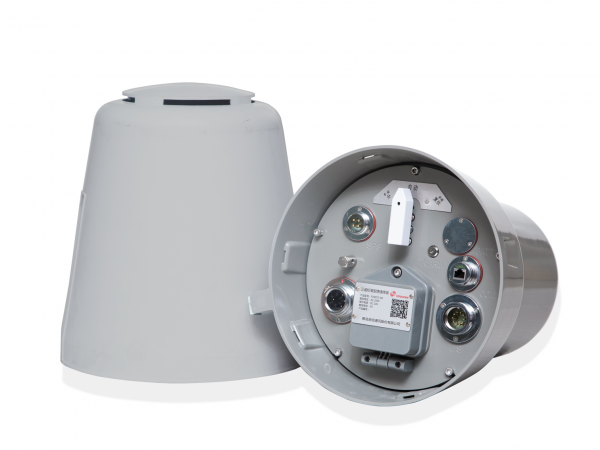

F30GTX-DX Feeder Terminal Unit is installed on the medium voltage feeder line, it can detect the voltage, current, power and other electric quantity, and control the on-off of the pole top switch, it has the functions of abnormal warning, fault detection, three-stage protection etc. The product is equipped with serial interface and Ethernet interface, and supports a variety of communication modes such as optical fiber, wireless and power line carrier. It can communicate with the distribution automation master station, execute the orders issued by the master station, adjust and control the distribution equipment.



Operating voltage

AC220V

Accuracy

Class 0.5 (votage, current), Class 1.0 ( active, reactive)



Metering & control capacity

Telesignalisation:4 telesignalisation

Telemetering:Uab, Ucb, U0, Ia, Ib, Ic, I0

Telecommand:switch opening, switch closing

Telesignalisation resolution

≤2ms

Software anti-shake

10 to 60000ms configurable

Punctuality

≤2s (per 24hrs)

Communication

RS232/RS485, RJ45

Backup power

Ultracapacitor, battery storage

Leave A Message

If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.

Related Products
F30GTX-DX Feeder Terminal Unit
F30GTX-DX series feeder terminal product is a new generation of intelligent high-tech distribution automation terminals.
Single Three Phase PLC Communication Module
Speedsmartcomm single/three phase power line carrier (PLC) communication module is developed on TCC081 series of PLC chips.
TC103 Consumer Interface Unit (CIU) Keypad Monitor and Control Unit
TOPSCOMM TC103 Prepayment Keypad is a customer interface unit(CIU) specifically designed to give the customer an easy and friendly interface unit for operating a Prepayment Meter. The major function of the CIU to enable the user to enter prepayment tokens for adding new credit and display of the consumer for energy efficiency purpose. The prepayment process utilizes STS prepayment token encryption.
TCC081 Series PLC Communication Chips
TCC081 series narrow band high-speed PLC communication chips (mainly include model TCC081E and TCC081F are independently researched and developed by Speedsmartcomm.
MMUZS43-DX Line Termination Unit
MMUZS43-DX Line Termination Unit /Meter Box Monitoring Unit is installed in an outdoor meter box or a cable branch box. It is used to monitor the current, voltage, power and other meter box information, and to realize the fault diagnosis function.

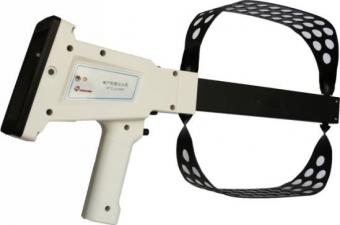

Missort Fault Detection Tracker for Energy Meter
