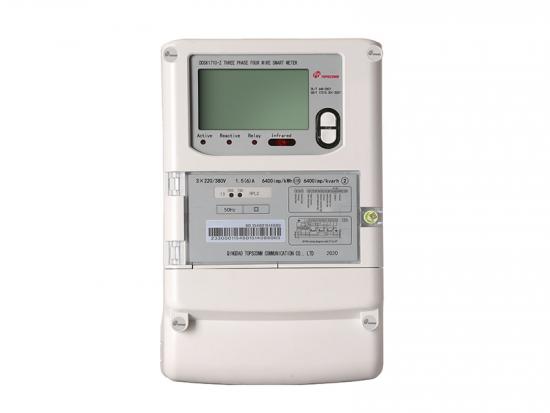

DTSK1710 series​ Three Phase Smart Energy Meter

DTSK1710 series Three-Phase Smart Energy Meter, developed and produced by Qingdao Speedsmartcomm communication co., LTD., are a new generation of high-end smart energy metering products.

  • Item NO.:

    DTSK1710 series​ Thr
  • Order(MOQ):

    1
  • Product Origin:

    Qingdao, China
Products Description

DTSK1710 series Three-Phase Smart Energy Meter integrate metering, remote control, monitoring, display, freezing, RS485 communication, infrared communication and modular communication (as PLC, RF, GPRS/4G etc.) functions. The smart meter adopt fully self-designed chip, self -developed software framework, hardware platform and mold shells, which greatly meet the requirements of automatic production, and product consistency, reliability and stability can be effectively guaranteed. Application of MTS to better guarantee quality and multilevel traceability.



Accuracy

Class 0.5 / Class B

Rated Voltage

3*230/400; 3×57.5V/100V3×100V

Current

3*10(100)A 3×0.3(1.2)A / Customized

Power consumption

<1.5W, 6VA

Reliability

MTBF≥10 years

Service life

15 years

Dimension

290mm×170mm×85mm

Weight

<2.0kg net.
