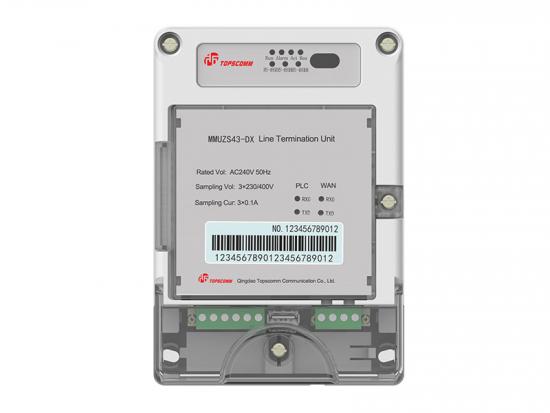

MMUZS43-DX Line Termination Unit

MMUZS43-DX Line Termination Unit /Meter Box Monitoring Unit is installed in an outdoor meter box or a cable branch box. It is used to monitor the current, voltage, power and other meter box information, and to realize the fault diagnosis function.

  • Item NO.:

    MMUZS43-DX
  • Order(MOQ):

    1
  • Product Origin:

    Qingdao, China
Products Description

MMUZS43-DX Line Termination Unit, equipped with built-in PLC modem, realizes functions as data acquisition, data storage, data transmission, events record and alarm, transformer identification and self-maintenance etc.

  • Data Acquisition:  energy meter data acquisition and three phase AC analog acquisition.

  • Data storage: classifies and stores the collected data, such as real time data, daily data and freezing curve.

  • Data transmission: realizes communication with DCU(Data Concentrator Unit)and energy meter.

  • Events record & alarm: power outage and power on detection and reporting.

  • Transformer identification: used with DCU to realize Transfomer-Branch-Meter box topology identification.

  • Self-maintenance: self-test, self-diagnosis, self-recovery, and fault features record, initialization ect.



Rated voltage

230V

Operating range

0.8Un1.2Un

AC sampling voltage

3x230/400V

AC sampling current

3x100mA

Operating temperature

(-25℃+60)℃

Operating temperature(limit)

(-45℃+70)℃

Humidity

Average per year75%

30days (With natural distribution in a year) ≤95%

Occasional the other day ≤85%

Dimension

160mm×112mm×70mm
