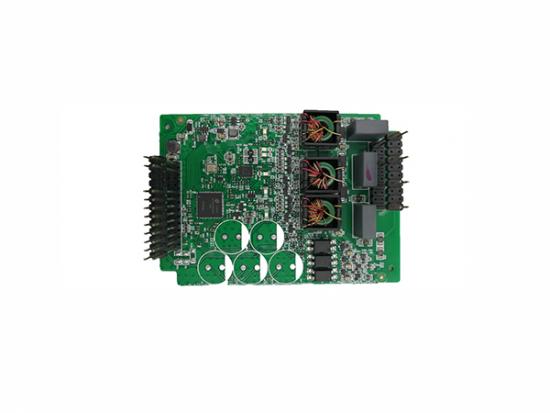

Broadband PLC Router Communication Module

Based on the self-developed power line broadband PLC chip TCRS091, this router can be directly applied to Data Concentrator Unit and other devices. The router interfaces with external host CPU through UART port.

  • Item NO.:

    Broadband PLC Router
  • Order(MOQ):

    1
  • Product Origin:

    Qingdao, China
Products Description

The router sets up the PLC network and operates as the master node. It manages sub-node registration, routine establishment and communicates with all sub-nodes. This router supports functions such as PLC network routing management, concentrator command issuance, and meter data upload.

Main features

  • PLC network routing management

  • Concentrator command issuance

  • Meter data upload

  • Reliable phase identification

  • Transformer zone identification

  • Power line abnormality identification

  • Fast events reporting

Technical Advantages

  • OFDM modulation, high spectrum utilization

  • TDMA + CSMA / CA channel access mechanism, good system stability

  • Concurrent meter reading mechanism, fast communication speed

  • Multi-frequency point communication, strong anti-interference ability

  • Distributed networking mechanism, high networking flexibility

  • Support fast and automatic networking

  • Support dynamic routing, real-time route recovery

  • Highly robust frame structure designed for complex power channel environments
